Acrylic awning fabric is a perfect choice for all outdoor application because of its outstanding fade resistant performance and olorfastness to water, colorfastness to washing , and color reproducibility. Its ultraviolet blocking agents protect the fabrics from fast aging caused by the effect of UV radiation so it is well recognized to be very durable under various weather conditions.

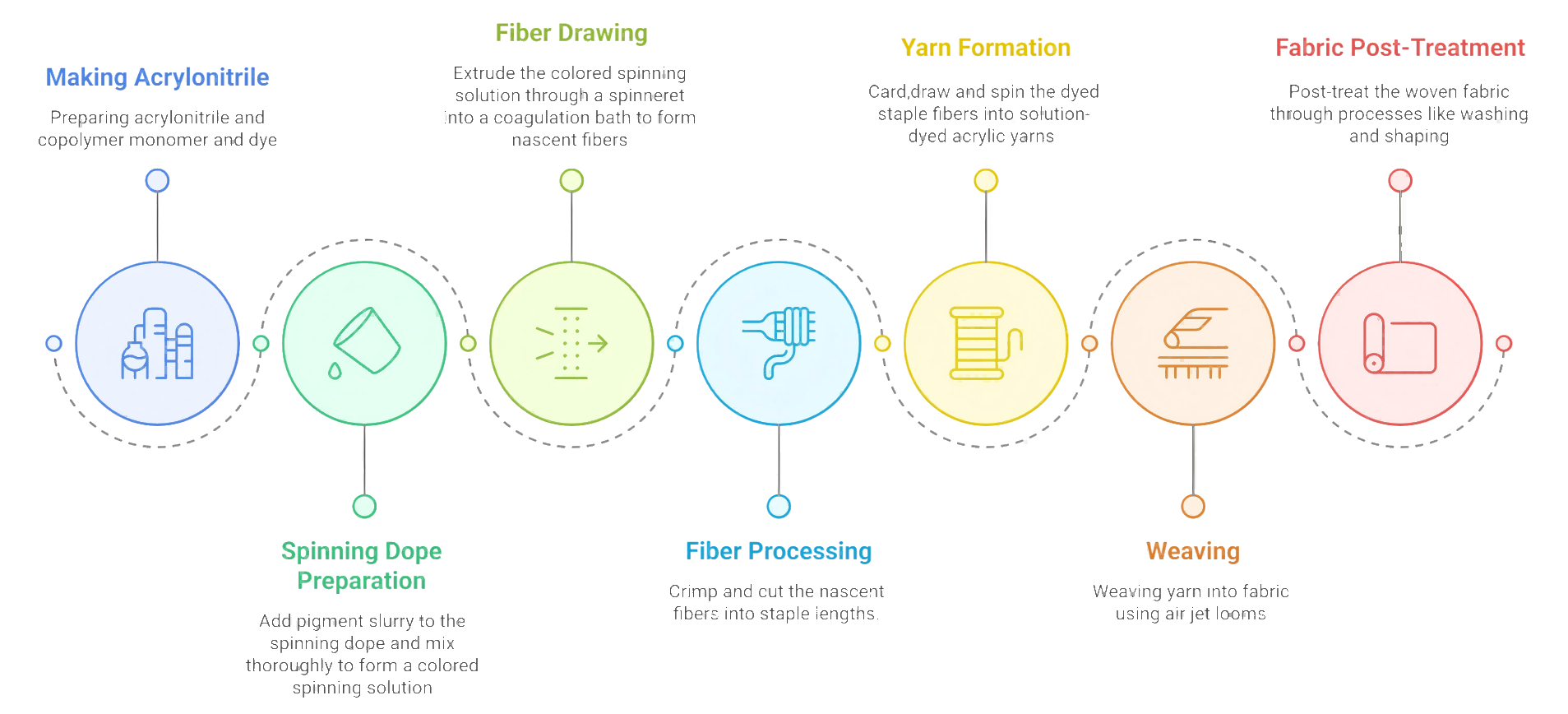

During manufacturing the acrylic fiber is dyed while it is still in a viscous form, we blend pigment and polymerthe so color is locked in before the fiber even becomes a solid. This allows the color all the way through the yarn once it is extruded. This process allows the color to be mixed into the solution thoroughly, bringing the color all the way through the fiber once it is extruded, creating a colorfast fabric much stronger than that obtained by dyeing the thread.
100% Solution dyed acrylic fabric has mold resistant qualities (mildew grows on dirt, pollen and other organic matter, so simple routine cleanings will prevent mildew from forming). In addition, the solution-dyed acrylic waterproof fabric can be bleached to remove tougher stains without compromising color.
Teflon or Carbon Zero water resistant solutions
Teflon® PTFE treatment, the acrylic fiber is soaked with a Teflon-based coating that has the remarkable property of being both hydrophobic (water shedding) and oleophobic (oil shedding). Water cannot readily wet out the surfaces. The water droplets behave like mercury when confronted with the coated surface. Teflon coatings create a water-repellant (hydrophobic) and oil-repellant (oleophobic) surface to repel water, dust, oil, and dirt on surfaces allowing for easy-clean. | |
Carbon zero is designed to replace traditional Teflon coatings, it is an advanced water-resistant treatment developed to provide superior fabric protection without the environmental drawbacks associated with fluorocarbon-based treatments like Teflon. This technology ensures that your outdoor fabrics remain durable, clean, and vibrant while significantly reducing their ecological footprint. |
TECHNICAL DATA SHEET:
Acrylic awning fabric | DuraSuntex DLT-AH1000Series | |
Material: | 100% acrylic solution dyed |
Technics: | Teflon® PTFE treatment |
Width: | 120cm (47″) / 150cm (59″) |
Weight: | 300gsm |
Roll length: |
60 / 100 meters |
Color fastness: | Level 7-8 (EU standard) |
UV resistance: | 2000+ Hours (US standard) |
Water pressure: | >300mm [Hydrostatic ISO 811:2018] |
UV Test: |
50+ [Rated UPF AATCC 183-2014] |
Tearing strength: | 42N Warp / 38N Weft |
Tensile strength: | 870N Warp / 1000N Weft |
Alcohol Test: | Level 4 [0.6cm 10s 45° AATCC 193] |
Water repellency: | Level 5 [Spray test: 20±2℃ ISO 4920:2012E] |
Oil Test: | Level 3 [0.6cm 30s 45° 27.3m N/m AATCC 118] |
Life span: | 10+ years |
5 Years Limited-Warranty
Our fabric guarantee 5 years limited warranty.
Warranty coverage just include fading or losing colors due
to the color performance degradation in normal environment.
Applications:
- Rigid valance awning
- Retractable awning
- Pergolas and Loggias
- Awnings
- Umbrellas
- Shade Sails
- Windows
Colour Swatches
Plain
WHITE | CREAM | LIGHT GREY | GREY TWEED |
DLT-AH1001 | DLT-AH1002 | DLT-AH1003 | DLT-AH1004 |
SMOKE GREY | DARK GREY | FAWN | COFFEE |
DLT-AH1005 | DLT-AH1006 | DLT-AH1007 | DLT-AH1008 |
CHOCLATE | YELLOW | AMBER | ORANGE |
DLT-AH1009 | DLT-AH1010 | DLT-AH1011 | DLT-AH1012 |
LIGHT ORANGE | DARK ORANGE | RED | BURGUNDY |
DLT-AH1013 | DLT-AH1014 | DLT-AH1015 | DLT-AH1016 |
OLIVER GREEN | DARK GREEN | ICE BLUE | ROYAL BLUE |
DLT-AH1017 | DLT-AH1018 | DLT-AH1019 | DLT-AH1020 |
NAVY BLUE | BLUE BERRY | BLACK |
DLT-AH1021 | DLT-AH1022 | DLT-AH1023 |
Stripes
DLT-AH1101 | DLT-AH1102 |
DLT-AH1103 | DLT-AH1104 |
DLT-AH1105 | DLT-AH1106 |
DLT-AH1107 | DLT-AH1108 |
DLT-AH1109 | DLT-AH1110 |
DLT-AH1111 |
DLT-AH1112 | DLT-AH1113 |
DLT-AH1114 | DLT-AH1115 |
Above items are all wholesale awning fabric, Low minimun order quantity!
Customized colour and width is also workable.
Colour of the photo is not 100% accurate, catalogue is available.
Contact sales for more information.
Cleaning Instructions:
Stains on the fabric can be cleaned with 37℃ low-temperature water, with neutral soap liquid. You can use a brush to brush lightly. After washing the stains, just dry naturally, do not twist, so as to avoid fabric deformation, and do not use temperature ironing, so as to avoid high temperature discoloration.
Warning: Do not use alkaline detergents, as alkalinity can dissolve acrylic fibers, causing fabric fading and compromising fabric strength.
