Lifting Tarp Fabric
PVC lifting tarp fabric is PVC coated polyester roll material used to manufacture reinforced tarps for snow removal, dirt handling and construction-site work. Duletai offers three constructions: 610gsm / 18oz/yd², 680gsm / 20oz/yd² and 1000gsm / 29.5oz/yd².
COMPARE PVC LIFTING TARP FABRIC SPECIFICATIONS
| Model | Weight | Base fabric | Density | Selection |
|---|---|---|---|---|
| DLT-5151 | 610gsm / 18oz/yd² | 1000D×1300D | 18×17threads/inch | Standard weight |
| DLT-5152 | 680gsm / 20oz/yd² | 1000D×1300D | 20×23threads/inch | Denser reinforcement |

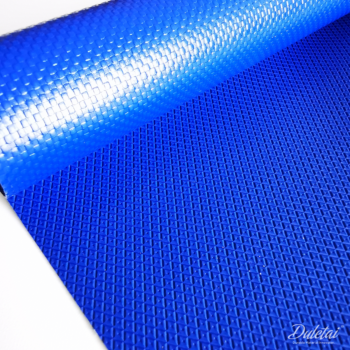

| DLT-5153 | 1000gsm / 29.5oz/yd² | 1000D×1000D | 30×30threads/inch | Heavy-duty weight |
LIFTING TARP FABRIC APPLICATIONS
Snow removal: Fabric for reinforced tarps laid before snowfall, then collected for removal.

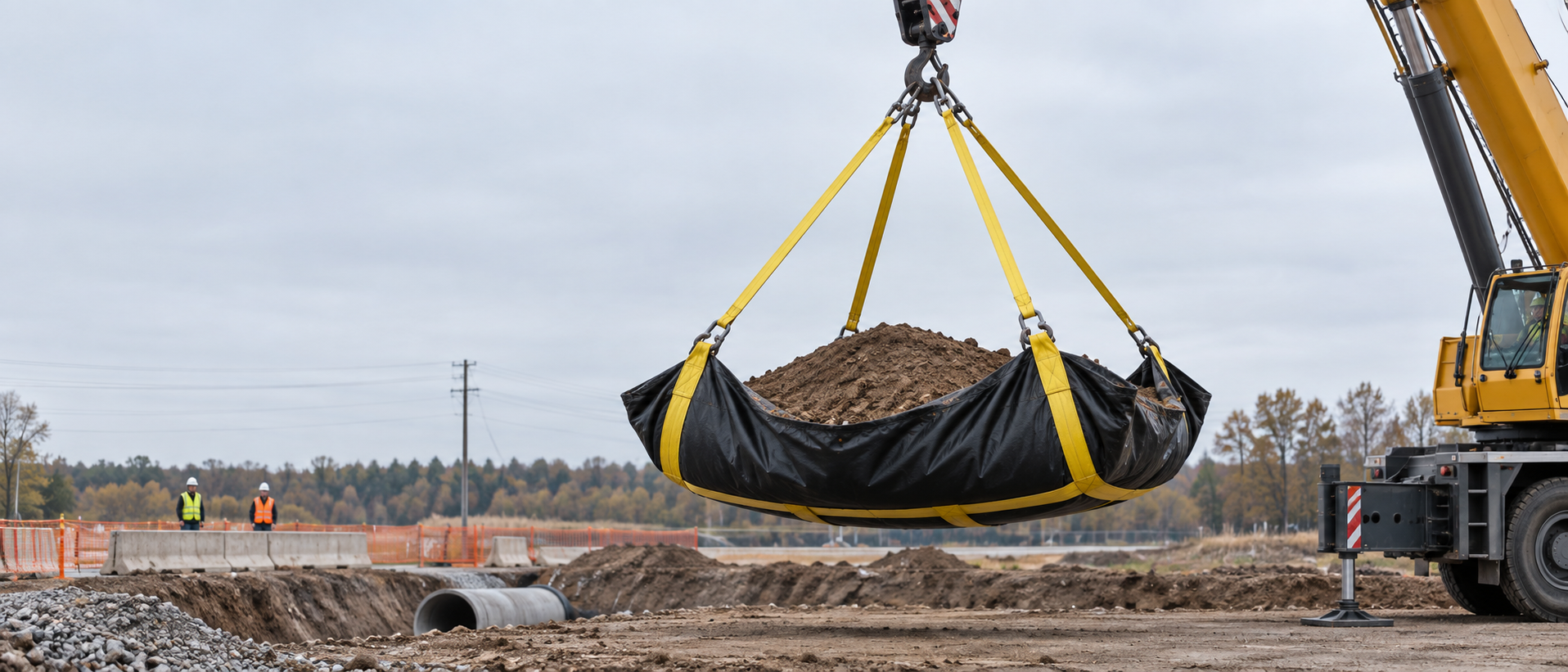

Dirt handling: Material for reinforced soil-collection tarps used during utility and construction work.
Construction cleanup: Fabric for engineered debris-tarp assemblies and site protection covers.
Industrial covers: Waterproof panels for equipment, truck and temporary storage covers.
HOW TO SELECT PVC TARP MATERIAL
Choose the construction: Compare finished weight, yarn denier and weave density together. DLT-5151 provides the lightest option in this range; DLT-5152 uses a denser 1000D×1300D base; DLT-5153 is the heaviest option with a 30×30 construction.
Plan the fabrication: Panels can be joined by hot-air or high-frequency welding, or incorporated into sewn assemblies. Finished lifting designs use load-bearing webbing and reinforced lifting points.
Specify the working environment: Include cold-weather flexibility, UV exposure, surface finish and any required flame-retardant or chemical-compliance specification.
PVC LIFTING TARP FABRIC FAQ
DO YOU SUPPLY FABRIC OR FINISHED LIFTING TARPS?
This range supplies PVC coated polyester fabric in rolls for tarp manufacturers.
WHAT IS THE DIFFERENCE BETWEEN GSM AND DENIER?
GSM describes the finished material weight per square metre. Denier describes yarn linear density. The 18×17, 20×23 and 30×30 figures describe warp and weft yarn counts per inch.
DOES FABRIC WEIGHT DEFINE LIFTING CAPACITY?
No. Lifting capacity depends on the complete tarp design, including webbing, lifting points, seams and assembly testing.
WHAT INFORMATION IS NEEDED FOR A QUOTATION?
Send the model, quantity, colour, usable width, roll length and application. Include required test values, formulation options, packaging and destination.
