PVC tarpaulin fabric for bags combines a polyester textile base with PVC surfaces for bag manufacturing. Duletai supplies this 500 gsm material in rolls, with a choice of colors, surface finishes and hand feels. It is the lowest-weight option in this PVC bag fabric series, for buyers comparing material weight and handling.
TECHNICAL DATASHEET:
| Bag fabric | DuraTarps DLT-5830 | |
| Structure: | PVC / Polyester base fabric / PVC |
| Base fabric: | 500D × 500D / 18 × 17 threads/inch |
| Weight: | 500gsm |
| Width: | 1.05–3.2 m |
| Customization options: | Color / Thickness / Roll width / Flame retardancy / Environmental compliance / Anti-static / Anti-mildew / Antibacterial |
| Tensile strength: | 1283/1120N/5cm |
| Tearing strength: | 270/230N/5cm |
| Peeling off strength: | 65N/5cm |
| Reference test methods: | Tensile: ISO 1421; tear: DIN 53363; coating adhesion: DIN 53357. |
| Fabrication methods: | Hot-air welding / High-frequency (HF) welding / Sewing |
| Suitable temperature: | −30 to +70 °C |
| Flex resistance: | >50,000 cycles — DIN 53359 A |
| Package: | Paper tube + Kraft paper |
| Meter per roll: | 50-500m |
PVC TARPAULIN FABRIC FEATURES:
Waterproof surfaces: PVC on both sides blocks water at the fabric surface.
Reinforced construction: Polyester base fabric supports tensile and tear performance.
Protective outer layer: PVC covers the yarns against everyday rubbing.
Easy cleaning: Wipe away splashes and surface dirt.
Flexible fabrication: Hot-air welding, high-frequency welding or sewing.
FLAME-RETARDANT & ENVIRONMENTAL COMPLIANCE OPTIONS:
Flame-retardant and environmentally compliant formulations are available for the PVC bag fabric series. Specify your destination market and required standard so the appropriate formulation and order specification can be confirmed.
MATERIAL SUPPLY OPTIONS:
Customize: Color, thickness, roll width, flame retardancy, environmental compliance, anti-static, anti-mildew and antibacterial options.
Plan your cutting: Specify usable width within 1.05–3.2m and roll length within 50–500m to match your cutting layout.
Match your design: Send a color reference or fabric sample, preferred surface finish and hand feel.
Meet your market: Include the destination and any required chemical, flame-retardant or other test standard.
BAG FABRIC APPLICATIONS:
1. Dry bags and outdoor storage — select the required material weight, flexibility and surface finish.

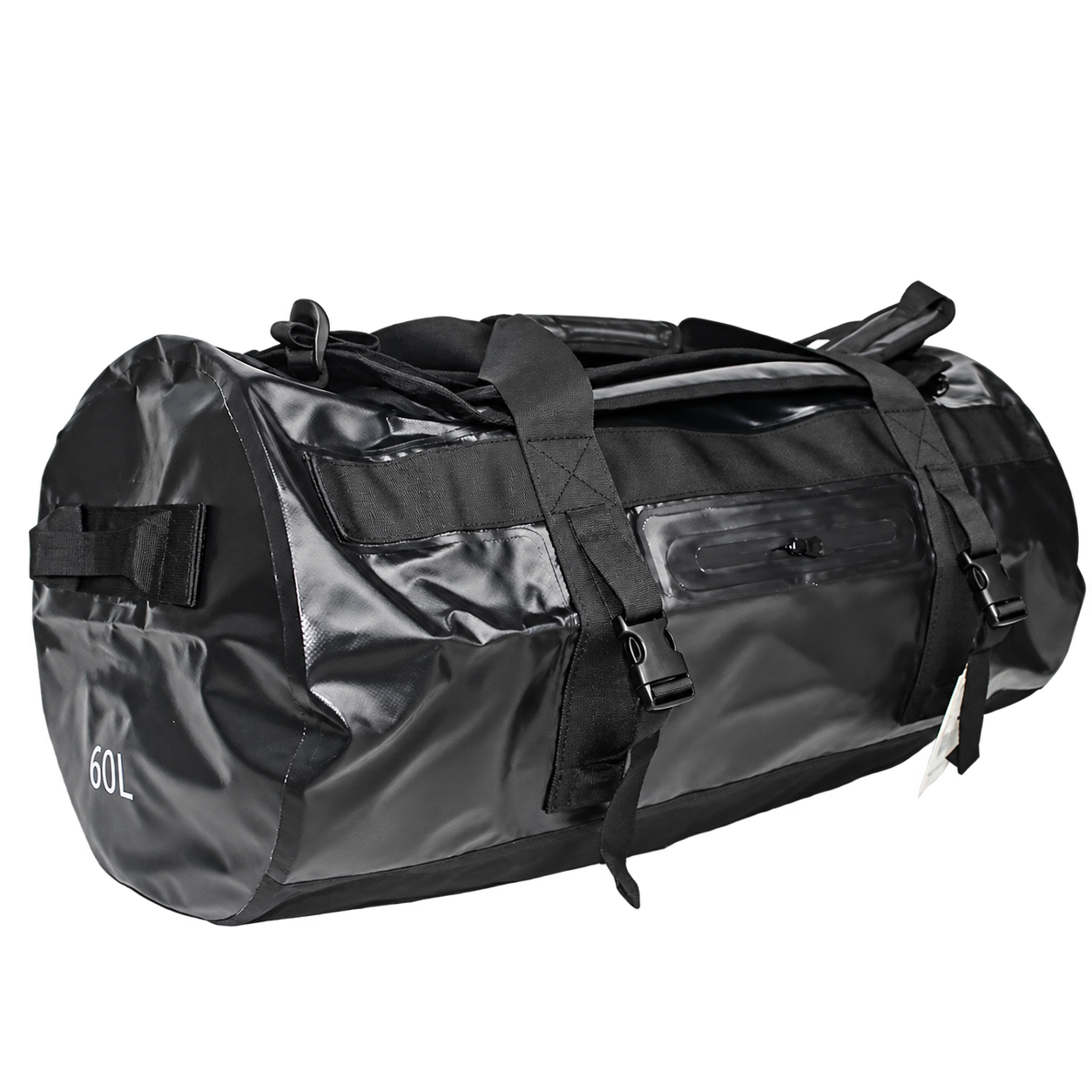

2. Travel and equipment bags — material weights and roll widths are available for different requirements.
3. Tool and utility bags — specify the required texture, hand feel and material properties.
Application examples across the fabric series. Duletai supplies the fabric in rolls. Confirm color, finish and hand feel against the approved sample.
FREQUENTLY ASKED QUESTIONS:
Can this fabric be welded?
Yes—hot-air and high-frequency welding are suitable processing routes. Use a trial seam to set machine conditions for your material and seam design.
Can it be used for food delivery bags?
Yes, as the outer shell of delivery bags and insulated delivery boxes. Pair it with the insulation and lining specified for your design.
What should I check in a sample?
Check color, thickness, hand feel, foldability and cleaning. For production approval, evaluate tensile, tear and peel strength, abrasion, color rubbing and your actual welded or sewn seam.
What should I send for an accurate quote?
Model or target gsm, quantity per color, usable width, roll length, bag application, fabrication method, delivery destination and required delivery date. Add any mandatory test requirements.
REQUEST SAMPLES OR A QUOTATION:
Request DLT-5830 samples or send your current fabric sample for comparison. Include the quantity and required material options in your inquiry. MOQ, sample arrangements and lead time will be quoted for your requested specification.
