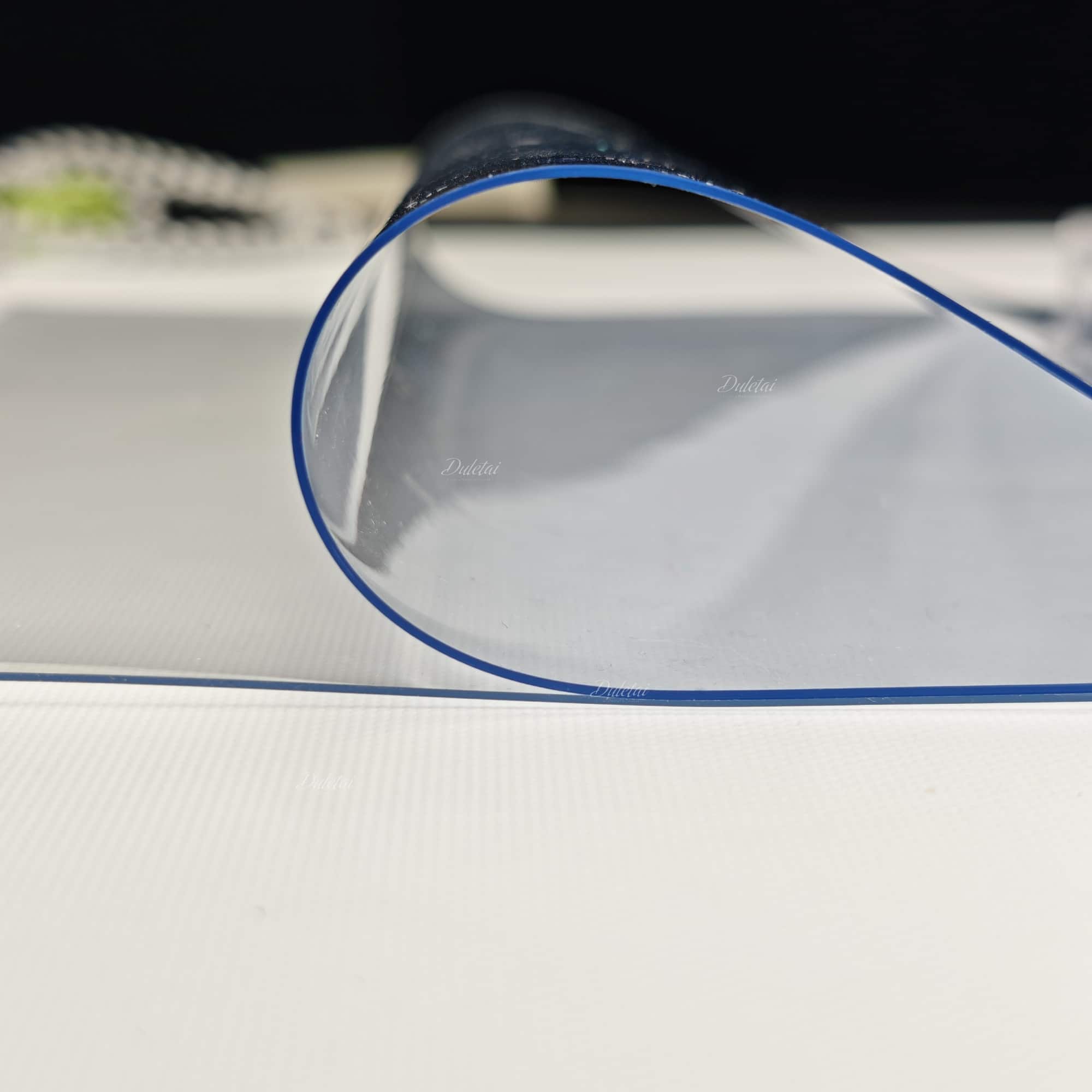

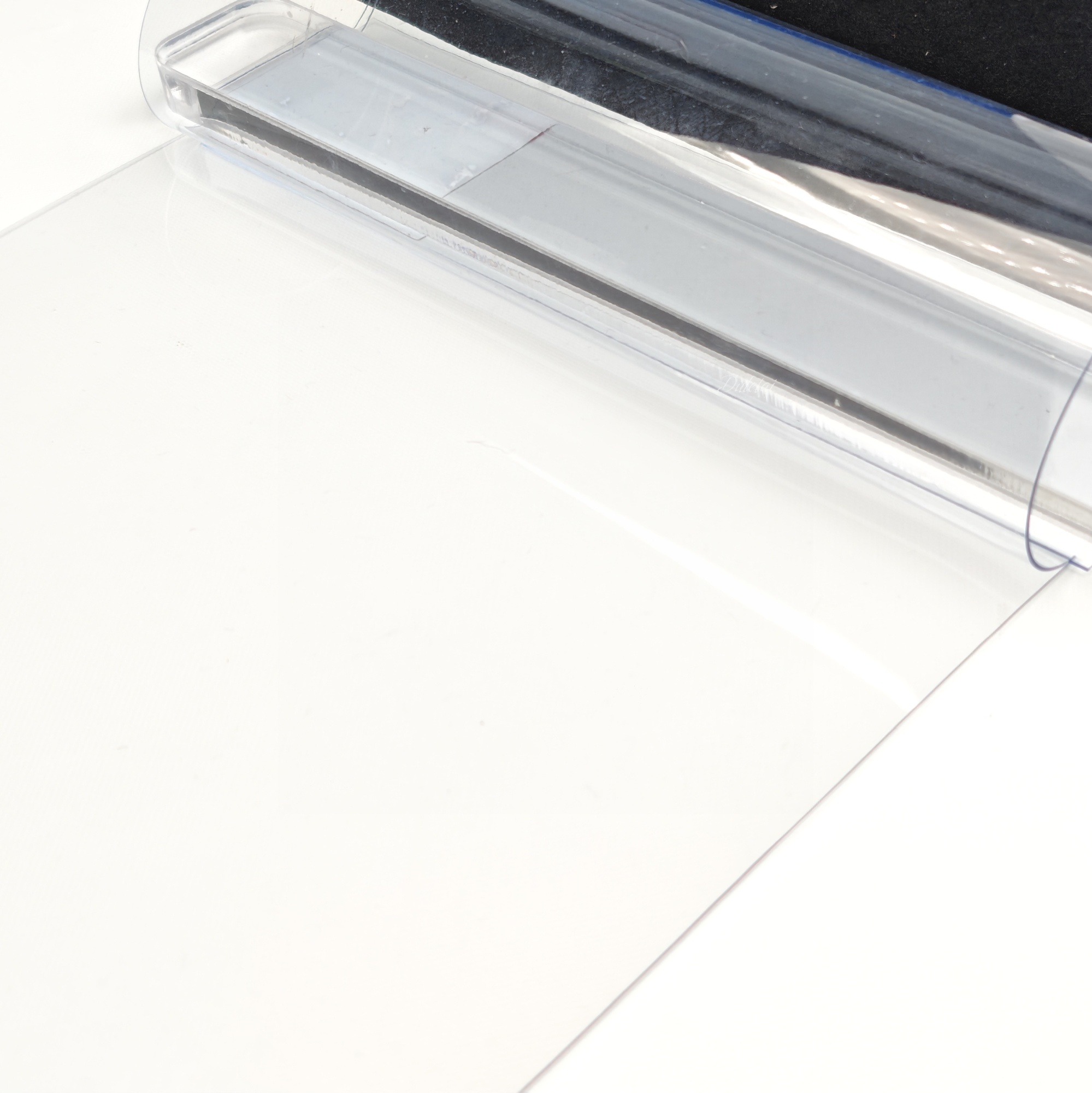

Transparent pvc film manufactured using high-precision calendaring technology followed by a water quench process. This rapid cooling method significantly enhances the film’s clarity by stabilizing the molecular structure, reducing internal stress, and eliminating surface haze. The result is a film with excellent transparency, a smooth surface, and consistent quality. At 0.7mm thickness, the film provides a perfect balance between strength and flexibility, making it ideal for applications that demand both durability and visual clarity. It maintains performance in varying environmental conditions and offers excellent resistance to UV, moisture, and tearing. Designed for professional performance, our 0.7mm transparent PVC film is the clear choice for high-clarity, long-lasting solutions across marine, architectural, and commercial applications.
Technical Datasheet:
| Super clear PVC film | DuraTarps DLT-7007 |
|
| Technology: | Calendering |
| Feature: | Water quench |
| Hardness: | 20-60 PHR According to customer’s requirements |
| UV resistetant | 3.5 ASTM G154-06 Standard |
| Transparency: | Super clear / Crystal clear |
| Thickness: | 0.7mm |
| Max width: | 2.2meters |
| Vicat softening point: | 75°C |
| Packing: | PE foam or kraft paper with clear film or color film; |
| Certification: | Reach/RoHS; Anti UV; Anti Cold; Anti Static; Fire Retardent |
| ITEM | PHR | 30PHR↓ | 31~40 | 41~50 | 51~60 | Test method |
|---|---|---|---|---|---|---|
| Tensile strength (kg/cm²) |
MD | ≧250 | ≧230 | ≧210 | ≧180 | ASTM D-882 |
| CD | ≧230 | ≧210 | ≧190 | ≧170 | ||
| Elongation (%) |
MD | ≧170 | ≧200 | ≧220 | ≧260 | ASTM D-882 |
| CD | ≧180 | ≧220 | ≧240 | ≧280 | ||
| Tear strength (kg/mm) |
MD | ≧9 | ≧7 | ≧6 | ≧5 | ASTM D-882 |
| CD | ≧9 | ≧7 | ≧6 | ≧5 | ||
| ITEM | Thickness (mm) / PHR | 30PHR↓ | 31~40 | 41~50 | 51~60 | Test method |
| Dimensional stability (-%) |
0.09m/m↓ | ≦5 | ≦7 | ≦9 | ≦9 | ASTM D-882 |
| 0.091-0.152 | ≦4 | ≦6 | ≦7 | ≦8 | ||
| 0.153-0.254 | ≦3 | ≦5 | ≦6 | ≦7 | ||
| 0.255-0.50 | ≦3 | ≦4 | ≦4 | ≦5 |
Features:
-
Production Method: Calendaring with water quench cooling
-
Outstanding Clarity: Enhanced light transmission and gloss
-
Flexible yet Durable: Ideal for cutting, stitching, or welding
-
Weather Resistant: UV, cold, and moisture resistant
-
Weldable & Customizable: Supports HF welding, printing, and lamination
Transparent pvc film Applications:
-
Marine canopies and boat enclosures
-
Transparent tent and dome windows
-
Protective sleeves and display covers
-
Industrial curtains and weather barriers
